| Place of Origin: | Made in China |
| Brand Name: | Air Bag Filter |
| Model Number: | High temperature air filter bags |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 pcs per day |
| Filtration Efficiency: | < 5mg/Nm3 | Material: | Nomex(Aramid) |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed | Usage: | Industry Dust Collector |
| Weight: | 450GSM~550GSM | Size: | DN 130x6000 Mm / Customized |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 260-280℃ |
| Air Permeability: | 200-300(L/m2/s) | Life: | 12-18 Months |
| High Light: | 450gsm Replacement Dust Collector Filter Bags,6000mm Replacement Dust Collector Filter Bags,P84 high temperature filter bags |
||

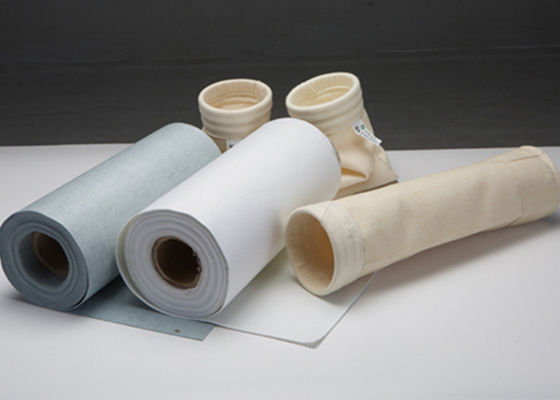

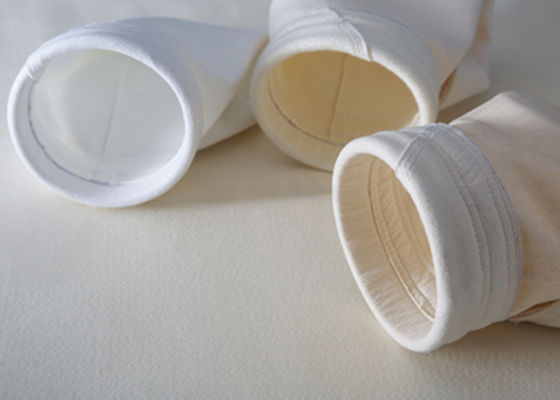

Description:
Material:Nomex(Aramid) and Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. According to your requirements.
Length: 1000mm~8000mm. According to your requirements.
Post Treatment For Filtering Materials
Singeing, calendaring,Heat setting
Water and oil repellent
PTFE Dispersion treatment
PTFE surface Coating treatment
Fire Retardant treatment
Technical Parameters:
| Fibre | Aramid |
| Scrim | Aramid |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2-2.5 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 15-30 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
|
Tensile strength 25mm/NWarp/weft |
1400-1600 |
|
Velocity(m/min) |
0.5-0.8 |
|
Note:All the parameters indicated the performance index of the products, the reasonable filtration should be chosen according to the specific working conditions. The above filter bag will adopt different post-processing techniques according to the specific working conditions. |
|
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days by express
Normal products : Available stocks
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Way of transportation & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Yiwu
