| Place of Origin: | Anhui,China |
| Brand Name: | Nomex Aramid Dust Filter Bags |
| Certification: | ISO9001-2008 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Dust Fiberglass With PTFE Membrane | Material: | PPS |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed | Efficiency: | 99.9% |
| Weight: | 400-600 GSM (±5%) | Size: | DN 130x6000 Mm / Customized |
| Type: | Industrial Dust Collector,Non-woven Filter | Working Temperature: | 260-280℃ |
| Air Permeability: | 200-300(L/m2/s) | Life: | 12-18 Months |
| High Light: | 25 mic PTFE Membrane Filter Bags,600gsm PTFE Membrane Filter Bags,Nomex Cement Filter Bags |
||
Quick Detail:
High filtration efficiency, long service life
Good anti-abrasion
High temperature grade
Anti-acid, anti-alkali, chemical resistance
High porosity, good air permeability
Good price quality
Laminated compound, grads counterchange
Technical Parameters:
| Fibre | PP, PE, PTFE, Nylon, Polyester,filberglass etc. |
| Scrim | PTFE |
| Weight(G/M2) | 550 |
| Thickness (mm) | 1.8 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 9 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
|
Tensile strength 25mm/NWarp/weft |
1400-1600 |
|
Velocity(m/min) |
0.5-0.8 |
|
Note:All the parameters indicated the performance index of the products, the reasonable filtration should be chosen according to the specific working conditions. The above filter bag will adopt different post-processing techniques according to the specific working conditions. |
|

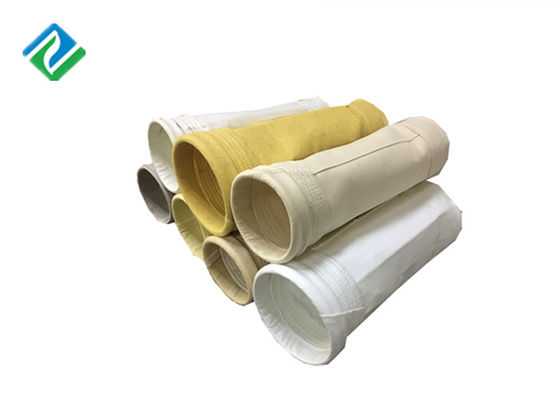

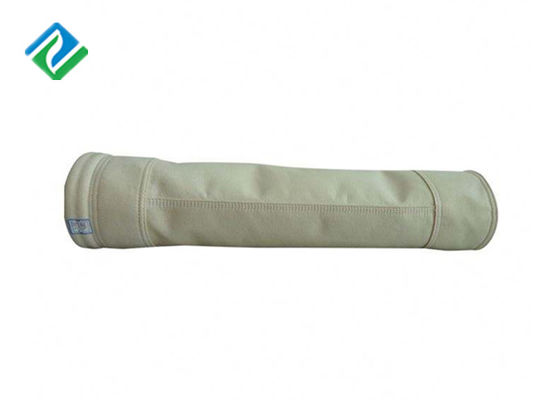

Product Picture
How to choose the filter bag ?
he filter bag plays a key role in the dust-cleaning process, so it is very important to do the filter selection, which should be based on its performance and the nature of the smoke, so as to have a rational and optimized scheme.
The Factors that affecting the selection of the filter medium
The Select Indication of the Filter medium
A. Temperature
B. Chemical Property
C. Concentration of the dust content
D. Filter Gas Speed
