SS304 Dust Collector Cages

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Filter Bag Cage
Certification:	ISO9001-2015
Model Number:	Filter Bag Cage

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	Pallet , Carton box,knitting bags
Delivery Time:	According to the quantity
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Dimension:	Customized	Applicable Industries:	Manufacturing Plant
Function:	Back Bone Support For The Dust Filter Bag	Main Function:	Filter Bag Skeleton
Application:	Environment Friendly	Treatment:	Epoxy , Galvanization
Material:	Carbon Steel, Galvanized Steel, Galvanized Steel, Stainless Steel	Product Name:	Filter Bag Cage
Type:	Round	Advantage:	Strong Welding
Highlight:	SS304 Dust Collector Cages , 3.5mm Dust Collector Cages , 24cm air filter cage

Industrial Filter Bag Cage For Air Dust Collector Dust Filter Bag Cage

Product Information

Our filter cage has good high temperature resistant, anti corrosive, organic silicon dust skeleton can be used in industrial and mining environment around 280 ℃, the instantaneous temperature up to 300 ℃.In some specific environments, stainless steel dust removal framework can be replaced to reduce the manufacturing cost. The organic silicon dust removal framework is widely used in high temperature and high corrosive environment.

Type	Circle type,Oval type,Flat type,Special-shaped
Material	Carbon steel,Galvanized steel wire,Stainless steel,Titanium wire
Finish treatment	Galvanized,organic silicon spray,anti-corrosion treatment
The number of lingitudinal bar	8~24 wires(Circle Type),10~16 wires (Oval Type)
Structure	Single section type bag cage,screw joint type,double wire PJE type,single wire PJE type,etc
Configuration	Venturi,protection nozzle stub

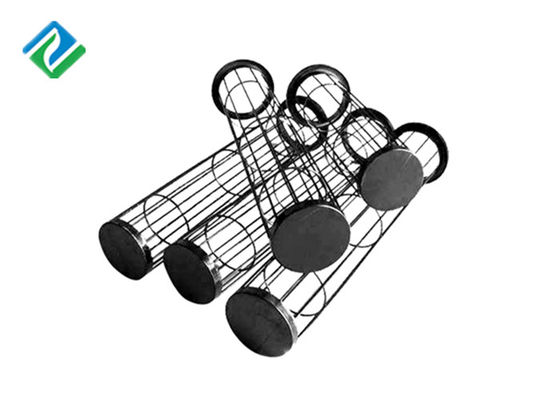

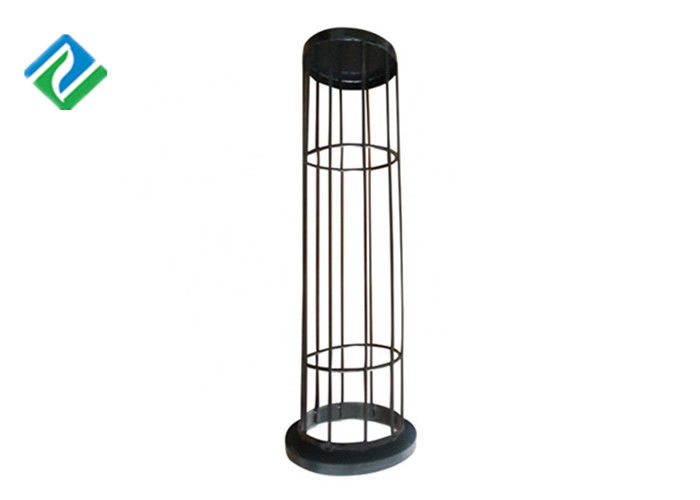

Product Show

SS304 Dust Collector Cages 0

Product Advantages

High-frequency welders are used to weld the skeleton once. Use iron or stainless steel wire with sufficient strength and rigidity, galvanized, sprayed, plated silicone, etc. The skeleton treated with silicone technology can completely replace the stainless steel skeleton, which can greatly reduce the maintenance.

Product Features

1. The dust collector frame adopts a round structure. The longitudinal reinforcement and anti-spread ring of the bag cage are evenly distributed. It has enough strength and rigidity to prevent damage and deformation. The top is equipped with a cold stamping short tube to ensure the verticality of the bag cage. And protect the safety of the filter bag mouth when blowing.

2. Precipitator skeleton material adopts 20# carbon steel, using a skeleton production line to form a shape to ensure straightness and distortion, smooth and burr-free after touch welding, and sufficient strength not to be welded off, no off welding, false welding and leakage Welding phenomenon.

3. Dust catcher Skeleton adopts galvanized technology. The coating is firm, wear-resistant and corrosion-resistant. It avoids the surface corrosion and filter bag adhesion after the dust collector working for a certain period of time, which ensures the smooth replacement of the bag and reduces the bag replacement process. Damage to the bag.

4. Special welded equipment make one time molding for superior performance.

5. Unloading assembly technology, can reduce the replacement of parts, safety and more convenient.

6. Strong and reliable design structure can keep longer life.

7. We can provide oval, star cage and special stainless steel cage.

FAQ

Q1. How about your delivery time?

A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q2. Can you produce according to the samples?

A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. Is it convenient to install and operate the equipment?

A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.

Q4. What is your terms of payment?

A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. Can it really meet the environmental requirements?

A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.

Q6. What if the equipment is broken?

A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
