Features:

1.Excellent steady under high temperature and resistance to acid;
2.P84 can operate continuously,under practical and low acid working conditions at temperature up to 500°F(260°C)
3.High Filtration efficiency,high tensile strength.
4.The complex cross sectional shapes create 30~90% more collection surface area when compared to round or oval shaped fibers.
5.Low back washing pressure,maximum flexibility.
6.The unique tri-lobal fiber structure of P84 provides customers with high effciency filtration,low pressure drop,and reduced cleaning energy.
7.Excellent dust cake release.
8.P84 has irregular,tri-lonal fibers that provide better collection efficiencies and enhanced dust cake release properties.

Description:

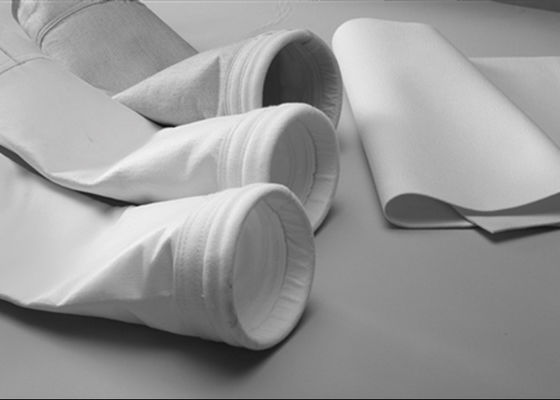

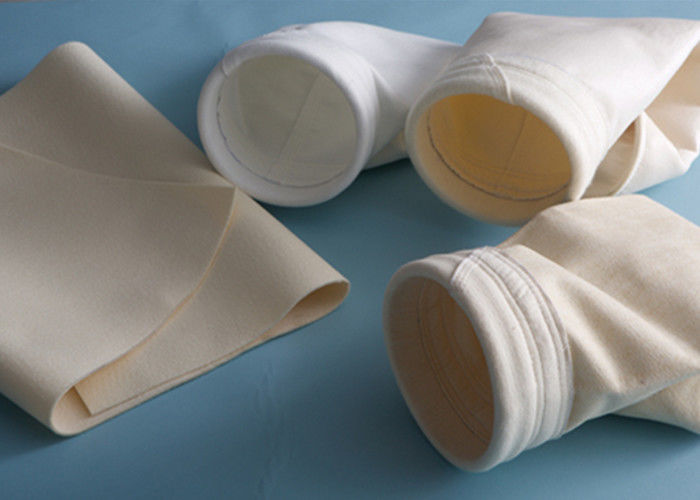

Material:P84 filter cloth
Weight: 500~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. Size can be customized
LEN: 1000mm~8000mm. Size can be customized.

Specification:

Fibre P84 material
Scrim P84 material
Weight 550G/M2
Thickness 2.2MM
Width ≤ 2.2MM
Length 50m/roll
Finish treatment Singeing,Calendering and Heat-set.
Air permeability (m3/m2/min): 2.0
Tensile strength (N/5× 20cm) Warp:>900 Weft:>1200
Tensile elongation : Warp:<35% Weft:<50%
Temperature : Continue: 250ºC Instant: 280ºC
Application Mainly used in Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler and Coal Fired Boiler.

Package detail and Delivery time

Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
