| Place of Origin: | Made in China |
| Brand Name: | Nomex Aramid Dust Filter Bags |
| Certification: | ISO9001-2008 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Industrial Fiberglass Filter Bag | Material: | PPS |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed | Usage: | Dust Filter,Air Filter |
| Weight: | 400-600 GSM (±5%) | Size: | DN 130x6000 Mm / Customized |
| Type: | Industrial Dust Collector,Non-woven Filter | Working Temperature: | 260-280℃ |
| Air Permeability: | 200-300(L/m2/s) | Life: | 12-18 Months |
| High Light: | Aramid Dust Extraction Filter Bags,6000mm Dust Extraction Filter Bags,400gsm aramid filter bags |
||
Description:
Material:Nomex(Aramid) and Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. According to your requirements.
Length: 1000mm~8000mm. According to your requirements.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Technical Parameters:
| Fibre | PPS fibre |
| Scrim | PTFE |
| Weight(G/M2) | 550 |
| Thickness (mm) | 1.8 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 9 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
|
Tensile strength 25mm/NWarp/weft |
1400-1600 |
|
Velocity(m/min) |
0.5-0.8 |
|
Note:All the parameters indicated the performance index of the products, the reasonable filtration should be chosen according to the specific working conditions. The above filter bag will adopt different post-processing techniques according to the specific working conditions. |
|

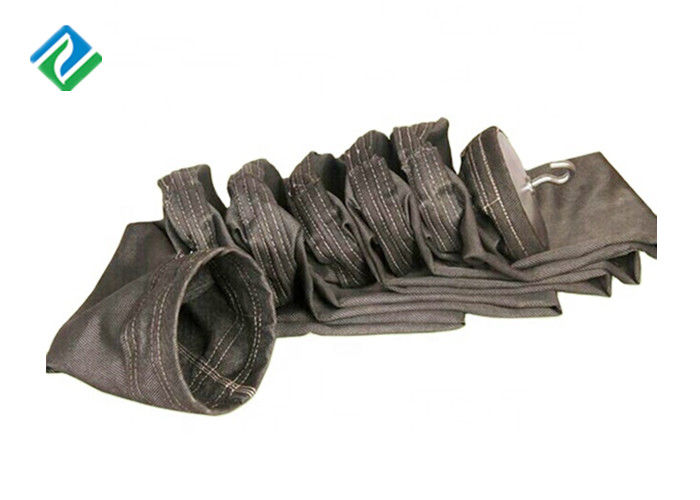

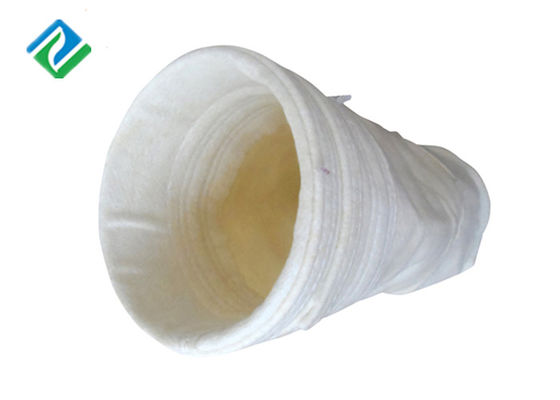

Product Show
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days |
5~7 days |
FAQ
Q: Are you manufacturer or trading company?
A: We are the professional manufacturer and exporter, 20 years production experience, 10 years export experience .
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiangsu Province, 1.5 hour by train from Shanghai.Warmly welcome to visit us anytime.
Q: How do you control the quality?
A: We insist "Quality First, Customer First", always pay attention to quality control from the beginning to the end. One year warranty period, ISO9001:2008, CE, BV, SGS, ATEX Certificates. Alibaba golden credit supplier.
Q: How can I get the quotation?
A: Tell us the specifications, such as working situation, dust or fume characteristics, air volume(CFM), filter area(M2), inlet temperature(℃), wind speed(M/min) etc. We will send the quotation within 24 hours.
Q: How to pay for the product?
A: T/T, L/C, Western Union, Money Gram,Credit Card are available.
Q: How long is the delivery time?
A: About 5-40 days upon the payment.
Q: How about the after-sale installation of dust collector?
A: 1.We provide installation manual, technical consulting forever. Our engineers are available to help you install dust collector onsite.
2.We also can provide installing turn-key projects overseas.
