| Place of Origin: | Hefei,Anhui |
| Brand Name: | High Tensile Strength Dust Collector Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 25-50 Micron P84 Filter Bag | Material: | 25-50 Micron P84(Polyimide) |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler And Coal Fired Boiler | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | 25-50 Micron Dust Filter |
| Type: | 25-50 Micron P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| Highlight: | 550gsm Polyester Needle Felt Filter Bags,25 micron Polyester Needle Felt Filter Bags,450gsm non woven filter bags |
||
P84 filter bags are applied in pulse jet cleaning dust collectors where chemical resistance and durability are reruired.
100%p84 filber high temperature felt.
P84 scrim reinforced felt which is surface treated can withstand various conditions.
Common treatments include singed, canlender and ePTFE membrane.
It has excellent abrasion resistance and good acid resistance .Due to the irregular shape of the filter ,greater surface
area ,the efficiency can reach 99.99%.
Specification:
| Material fiber | P84 | ||||
| scrim | P84 | ||||
| weight | 500g/m2 | ||||
| Thickness | 2.2mm | ||||
| Tensile strength (N/5×20cm) | warp | ≥1100N / 5cm | |||
| weft | ≥1300N / 5cm | ||||
| Tensile elongation (%) | warp | ≤30% | |||
| weft | ≤40% | ||||
| Air permeability (L/m2/S) (m3/m2·min) | 200-300 17 | ||||
| 260ºC hot air shrinkage warp | < 1% | ||||
| 260ºC hot air shrinkage weft | < 1% | ||||
| Working temperature | 260ºC | ||||
| Peak temperature | 280ºC | ||||
| Finishing treatment | Heating ,singeing ,calendering | ||||

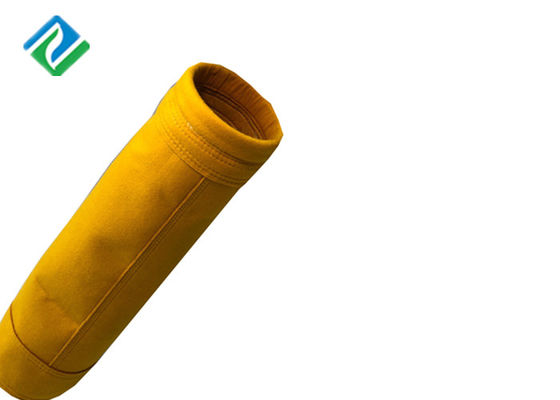

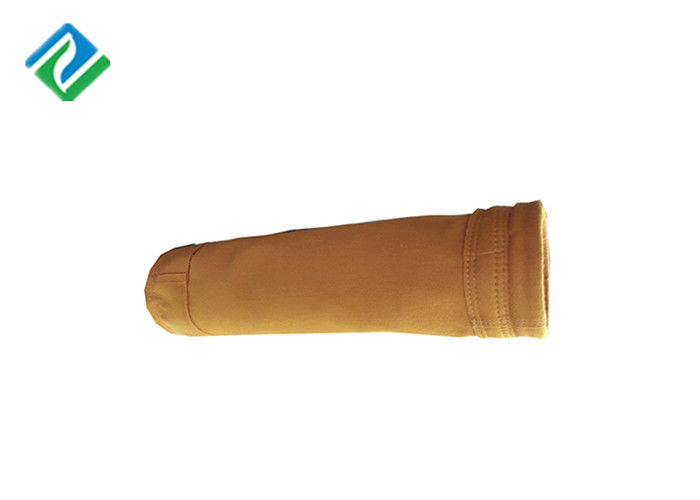

Product Show
Product Definition:
Polyester Needle felt is ideal filter material for dust filtration, according to different functions, it includes water & oil proof needle felt, antistatic needle felt, easy cleaning needle felt, PTFE membrane needle felt.
Features:
1. High Voidage.
2. Good air permeability.
3. High dust collecting efficiency.
4. High tensile strength.
5. Strong elongation.
6. Long service life.
7. Moderate temperature rating.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag
Application:
1. Asphalt mixing plant.
2. Biomass power stations.
3. Chemical and pharmaceutical industry.
4. High temperature dedusting.
5. Coal-fired power stations.
6. Food industry.
7. Non-ferrous metal and steel production.
8. Cement,gypsum and lime industry.
9. Thermal waste treatment.
10. Mining Plant.
11. Steel Plant.
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
