| Place of Origin: | Hefei,Anhui |
| Brand Name: | P84 Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 0.1 Micron Bag Filters / 3 50 Micron P84 Filter Bag | Material: | 0.1 Micron Bag Filters / 3 50 Micron P84(Polyimide) |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler And Coal Fired Boiler | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | 0.1 Micron Bag Filters / 3 50 Micron Dust Filter |
| Type: | 0.1 Micron Bag Filters / 3 50 Micron P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| High Light: | 0.1um P84 Filter Bag,450gsm P84 Filter Bag,0.1 Micron felt filter bag |
||

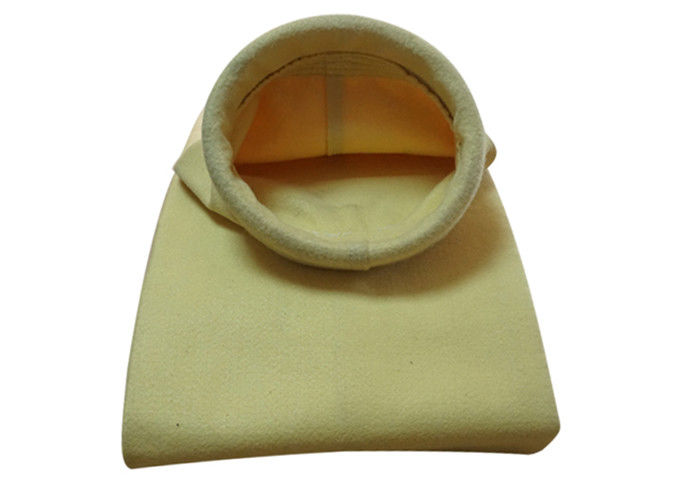

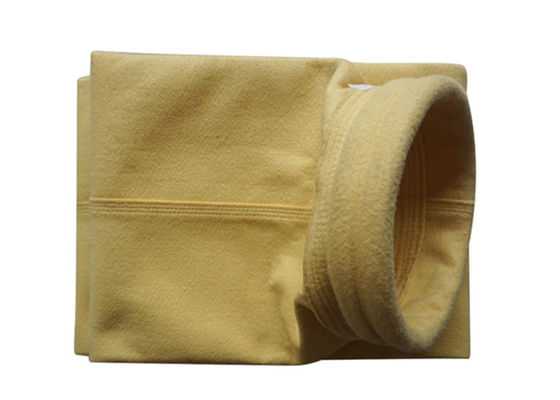

P84 Material Nonwoven fabric Dust Filter Bag for Dust Collecting
What is the application of our P84 filter bag?
P84 FILTER MEDIAS are mainly used in drying, burning, smelting, industrial kilns, coal-fired boilers and waste incineration process of flue gas purification.
Company advantages:
High-tech R&D manufacturing enterprise
5 years of manufacturing experience
10 years of R&D experience
Patented Filter Product with Micro/nano Structural Film
Strategic Cooperation with Tsinghua University
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Product advantages:
Compared with other competing products
1. Better characteristic of acid and alkali resistance.
2. Better characteristic of oxidation resistance
3. Better characteristic of soot cleaning
4. Better characteristic of waterproof
5. All these characteristics contribute to improve service life for one year at least
6. Better filter efficiency→5-10mg/m3
Specifications:
|
Product Name
|
P84 Filter Bag
|
||
|
Size
|
D120mmxL2000mm
Or As Customized
|
||
|
Weight(g/m2)
|
500
|
||
|
Thickness(mm)
|
2.7
|
||
|
Air permiability(m3/m2/min)
|
>17
|
||
|
Tensile strength (N/5×20cm)
|
warp
|
>700
|
|
|
weft
|
>1000
|
||
|
Tensile enlongation (%)
|
warp
|
40%
|
|
|
weft
|
40%
|
||
|
Broken strength (Mpa/min)
|
≤20
|
||
|
Continuous working temperature (degree C)
|
240
|
||
|
Short time Working temperature (degree C)
|
260
|
||
|
Anti-acid
|
Good
|
||
|
Anti-alkali
|
Medial
|
||
|
Anti-abrasion
|
Good
|
||
|
The stability of water solution
|
Good
|
||
|
Finishing treatment
|
Heatset and Singed One Side
|
||
Product Feature
1.Hydrolysis resistance
2.Good chemical resistance
3.Corrosion resistance
4.High efficiency filtration
5.Can be customized
P84 dust collector filter bag for flour mill air filter use
The filter bag is a key part of the operation of the bag filter. Usually the cylindrical filter bag is suspended vertically in the dust
collector. The fabric and design of the filter bag should be as efficient as possible for efficient filtration, easy dust removal and
durability. In pulsed and air box type pulse dust collectors, dust is attached to the outer surface of the filter bag. When the dust-
laden gas passes through the dust collector, the dust is trapped on the outer surface of the filter bag, and the clean gas passes
through the filter material and enters the inside of the filter bag. The cage inside the filter bag is used to support the filter bag to
prevent the filter bag from collapsing, and it helps to remove and redistribute the dust cake.
Filter bag is the most important part in dust collector which influences the collection efficiency and working temperature.
Renewal of bags creates major cost in maintaining bag house, so the lifetime of bags are the main factor affecting the cost
and working condition of bag-house.
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
