7 Microns 3D Porous 250mm PP Felt Dust Collector Bags

Product Details:

Place of Origin:	Made in China
Brand Name:	Gas Filtration Resistance Bags
Certification:	ISO9001-2015
Model Number:	Dust Collector Filter Bags

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Carton or Woven Bag
Delivery Time:	3 days
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Material:	Fber Glass	Shape:	Round
Applicable:	Industry Dust Collector	Finishing Treatment:	Singeing , Calendering
Weight:	550g/m2	Usage:	Dust Filter
Type:	Pocket Filter,PPS Filter	Working Temperature:	120-150 Degree
Air Permeability:	15-30 M3 / M2.m	Filtration Efficiency:	< 5mg/Nm3
High Light:	7 micron Felt Dust Collector Bags , 250mm Felt Dust Collector Bags , FMS polyester filter bag

Gas Filtration Resistance Bags 5 - 7 Microns Dust Filter Bag Three - Dimensional Porous Structure

Industrial dust collector dust filter bag Description:

Fiber Glass Filber is a reasonable structure, better performance of high-temperature filter material. It not only has a fiberglass fabric temperature, corrosion resistance, dimensional stability, elongation minimal shrinkage, high strength advantage, and carpet fiber is the short fiber which finess is just about 5-7 microns, three-dimensional porous structure, porosity, gas filtration resistance, is a relatively high speed, high temperature filter material. Compared with other high-temperature chemical fiber carpets, low price, low running resistance, high filtration precision, higher temperature, and other special advantages, but poor wear resistance.

SPECIFICATIONS FOR FIBER GLASS FILTER BAG
operation temperature	230-250	maximum surge temperature	280
grammage(g/m2)	800-1000	subsequent processing	teflon coating
anti-acid		good
anti-alkali		fair
anti-hydrolysis		fair
air permeability(m3/m2*min)		10-13
tensile strength	L(N/5*20cm)	>1800
	W(N/5*20cm)	>2000
Use industry	apply filters in steel, metallurgy, carbon black, power generation, cement, chemical industry, high temperature flue gas

Product Image

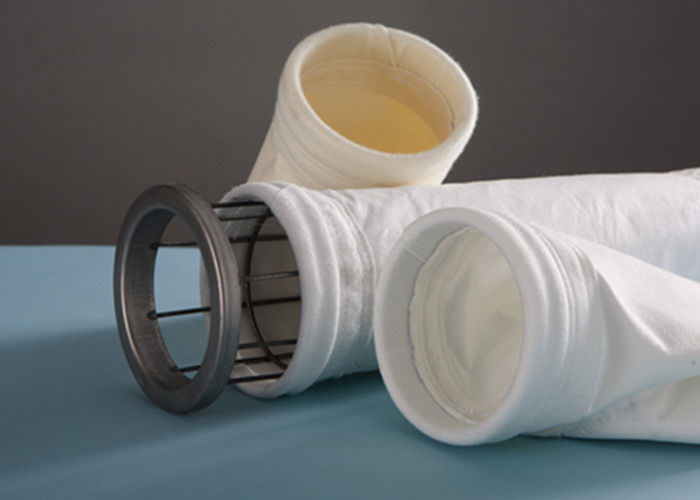

7 Microns 3D Porous 250mm PP Felt Dust Collector Bags 0

1. Brief Introduction Of Bag Filters

Bag filters are in general frequently used for dust removal in industrial applications. We make filter bags to fit most styles and types of bag houses and other dust collection systems. Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations.Medias are available in various fabric weights and treatments such as singed, glazed, PTFEmembrane, anti-static, acid resistant and more.

2. The Types Of Bags We Produce

Polyester filter bag,polyester antistatic filter bag,polyester filter bag with PTFE membrane,polyester filter bag water and oil repellent,pp filter bag,aramid filter bag ,acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84 filter bag,pps filter bag,fiberglass filter bag,PTFE mix pps filter bag,Nomex filter bag and FMS and so on.

3. We pay attention to following processing matters:

(1) Precise design required size of the filter cloth for filter bag parts, the filter cloth will larger than the actual amount design size, to leave a spare for weaving.
(2) To choose the right filter bag accessories, specifications and check its quality. The filter bag accessories should match the filter bag quality requirements.

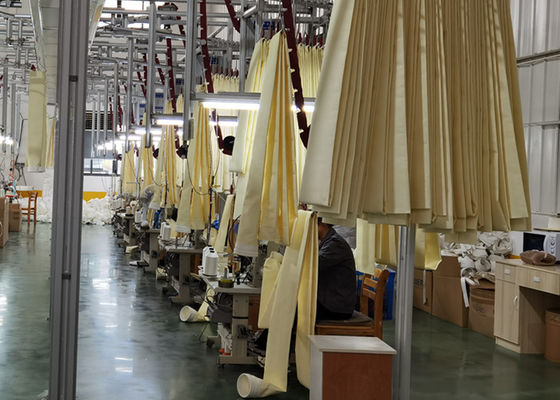

(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.
(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing , no smoking.
(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.

4. Remarks
1) The length of dust filter bags: can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3) Prodction details:Double bottoms and reinforcement to make abrasion resistance.
Sewing thread: PTFE thread, polyester thread.
4) Inspection: Filter bags will be according to the national standards, industry standards and enterprise standards.
5) If your required filter bag is different from our usual one, then please send us your drawing picture and choose material you need since we also produce the nonstandard filter bag.

5. Advantages of the product:
1. Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2. Strong intensity
3. Excellent anti-abrasion,good finishing treatment
4. Good raw material, competitive price
5. High filtration efficiency
6. Fast delivery
7. Size can be customized
8. Factory manufacturer could contol quality and price
9. Strict quality inspection and contol
10. Professional designer team to match with your operating condition

What we can offer:

1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.

Shipping way & Package details :

By sea / air / express

Shanghai / Ning Bo/Tianjin
