| Place of Origin: | Anhui,China |
| Brand Name: | Air Slide Fabric |
| Certification: | ISO9001-2015 |
| Model Number: | Air Slide Fabric |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pallet , Carton box,knitting bags |
| Delivery Time: | According to the quantity |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | Negotiable |
| Product Name: | 100% Air Slide Fabric | Feature: | Shrink-Resistant, Flame Retardant, Oilproof |
|---|---|---|---|
| Use: | Industry | Weight: | 1 Square =4 Kg |
| Type: | Canvas | Applicable Industries: | S: Manufacturing Plant, Cement Industry |
| Color: | White/Yellow | Max Width: | 2600mm |
| Technics: | Woven | Thickness: | 4-8mm |
| High Light: | 4000g/M2 Air Slide Fabric,5mm Air Slide Fabric,102in air filter fabric |
||
Product Parameters
100% polyester air slide fabric for cement plant/power plant/ chemical plant
Specification data:
Raw Material =100% spun fiber polyester
Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O
Pressure: 2000pa for middle air resistance
4000pa for high air resistance
Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%
Max Width: 2800mm
Operating Temperature < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C
Technique data:
| name | material | warp tensile strength(N/mm) | thickness(mm) | temperatuer ≤ | instant temperature ≤ | 980Pa air permeability (m3/m2min) | specification(mm) |
| 4layer | polyester | ≥ 425 | 3~8 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |
| 2layer | polyester | ≥ 210 | 2.5~3 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |

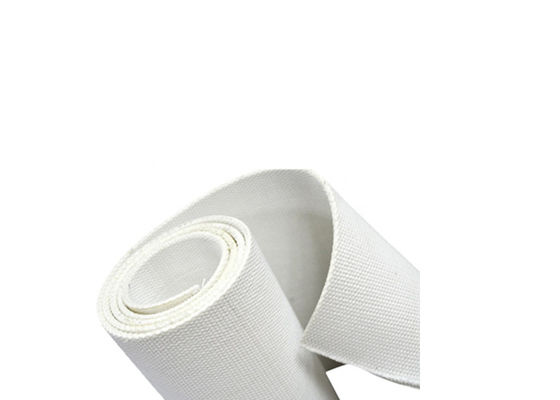

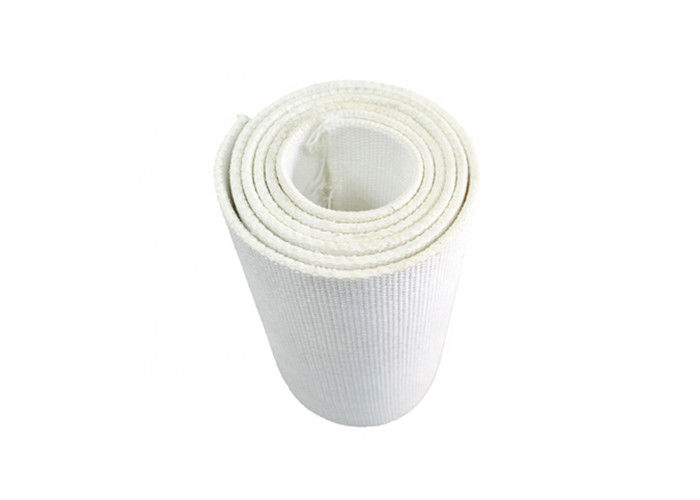

Product Show
Advantages
Working principle
In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
In fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.
In cement vessel's hold:
The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt
Application:
In industry
Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust
Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum
Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder
In machinery:
Silos / Tanks : Discharging systems, Warehouse units, Mixing equipment, Homogenizing systems
Chute Bottoms: Conveyor systems, Ventilator systems, Aeration systems
Vehicles : Silo truck discharging cones, Railway wagon discharging cones, Vessel aeration & discharging bottoms, Container aeration & discharging bottoms
Powder Coating Machinery
Bottoms for sinter basin
FAQ
Q: ,What certifacation you have?
A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock.It depends on the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.
IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
