Nomex / Metamax Dust Filter Cloth / Fabric for Air Filter Collector Air slide Hose Filter Cloth Filter Fabrics for Dust

Product Parameters

Metamax needle felt
Our company adopts metamax fiber from Amrican and Japan to produce Metamax (aramide) needle felt. Aramide has two types meta-aramid and para-aramid. Metamax is the mixture of 95% m-aramid and 5% p-aramid. Metamax needle felt is meta-aramid fiber invented and manufactured by Haotian industrail. NOMEX fibers are from the generic fiber group called meta-aramid. Another brand name from this fiber group is CONEX and NOMEX. .
Temperature resistant: 204~240°C
Metamax needle felt can operate in a continuous temperature of 400°F (204°C) with an excursion up to 425°F (240°C) before thermal degradation occurs.

Metamax filtration bags features:

1.  Due to its high thermostable performance, it is able to perform well for a long period of time under acid base in 204ºC;
2.  Chemical Resistance to weak Acids, weak Alkalis and Organic Solvents
3.  Its high performance in its thermal stability and low contraction performance, guaranteed the end product filter pocket size remain stable, the avoidance of bag cage broken phenomenon;
4.  Its high performance regarding its wearability and the folding endurance make it the perfect product for many kinds of dust structure and the dust quantity. This also helps in extending the filter material's service life.
5.  High resistance to breakage and its high break elongation ratio guaranteed the end product of filter materials with high intensity, good product longevity, and better tolerance to injection;
6.  Metamax is easy to process with low waste and it is compatible to most machines. This enhances its processing efficiency and reduces cost.
7.  Perfect combination of performance with price - high performance to price ratio
8.  Its high performance in ventilation reduces the dropping of dust removal system pressure and thus save the energy and its related cost.
9.  It is flame resistant with self-extinguish nature and non-melt drop.

Applications:
Tail gas/fume/dust from metallurgical plant,
Carbon black plant, iron works(blast furnace gas),
Cement plant (tail gas from vertical kiln),
Petroleum fumes from mixing round the beton and asphaltum, Coal fired boiler, etc


Types of Heat Resisting Felt Roller

1 )  500 C temperature resistance, 100% Aramid ( Dupont Fiber ) Heat resistant fiber for production.
Fiber introduction: Aramid (Dupont Fiber) fiber can resist instant 550 C, longtime working with high temperature sections material (300 C ~500 C ), will not melt and pollute Sections Aluminum as Aramid (Dupont Fiber) Fiber is Thermo settings.
2 ).  Kevlar Felt, 480C temperature resistant, 70% Aramid (Dupont Fiber) Fiber blended with 30% carbon fiber to get Kevlar Felt.


Fiber introduction: carbon fiber is also Thermo Setting material will not melt and pollute sections Aluminum, Kevlar Felt can resist instant 480C, long time working in high temperature conditions ( 280 C ~500C),
felt will be in weightlessness. 30% carbon fiber will take calorific conduction and save production cost.


Types of Heat Resisting Felt Belt ( Kevlar / Nomex Roller / Belt )
1 ). 480 C ~500 C Felt Belt
2 ). Nonporous Felt Blet 480 C ~500 C
3 ). Regular Surface conglutinate Felt Belt, 480C ~500 C.

Application of Kevlar Roll Nomex Felt Belt :
1 .  Applided in walking beam, Felt Roller 100% Aramid (Dupont Fiber). 500 C. 12mm thickness.
2 .  Nonporous felt belt is composed with nonporous scrim and needle punched layer. Different tons of extruder will take different belt,


AA class: 3 layer of Aramid (Dupont Fiber) nonporous scrim, tensile strength 35N/ mm, are suitable for
2000tons extruder.
A Class: Composed by 1 layer of Kevlar nonporous scrim,3 layer high strength Polyester scrim. PE layerin the middle can only resist 200 C, suitable for less then 2000 tons extruder.

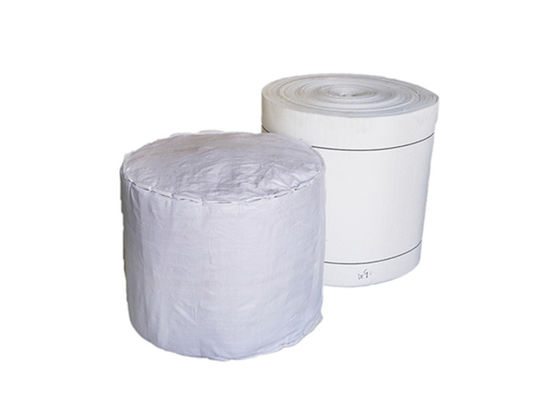

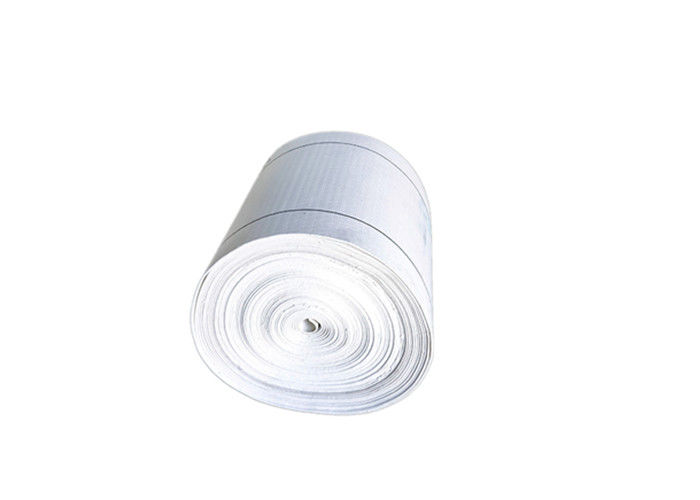

Product Image

Working principle

In cement plant:

An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.

In fluidization silo:

Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.

Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.

In cement vessel's hold:

The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt

Application:

In industry

Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust

Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum

Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder
