| Place of Origin: | Made in China |
| Brand Name: | Fiberglass Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Material: | PTFE | Thickness: | 1.6-2mm |
|---|---|---|---|
| Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 500gsm, 550gsm And 700gsm | Usage: | Industry Dust Collector |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 500gsm PTFE Filter Bag,2mm PTFE Filter Bag,PPS baghouse filter bags |
||
1.High Temperature Resistance:240-280
2.Excellent Anti-Acid And Anti-Alkali
3.Abrasion resistance, high tensile strength
4.Long Service Life: > 4500 hours
5. low resistance of filtration
6.Single fiber, high porosity, gas filtration resistance
7.Can be used in a variety of complex situation and harsh environmental conditions
Specifications:
| PRODUCT CODE: | |||
| Component | Elongation@50N/5cm | ||
| Fibre | 100%PP | Longitudinal(%) | Transverse(%) |
| Scrim | 100%PP | <3% | <3% |
| Weight(g/m²) | 500 | Operating Temperatures | |
| Thickness(mm) | 2.0 | Continuous(°C) | Surge(°C) |
| Density(g/cm3) | 0.25 | 130 | 150 |
|
Mean Air Permeability (L/dm².min) |
150-250 | Max Dry Shrinkage in 90 minutes:(150°C)(%) | <1% |
| Breaking Strength | Surface Treatment |
Heat Setting, Singed, Represent add stainless steel fibers |
|
| Longitudinal(N) | Transverse(N) | ||
| >1000 | >1200 | ||

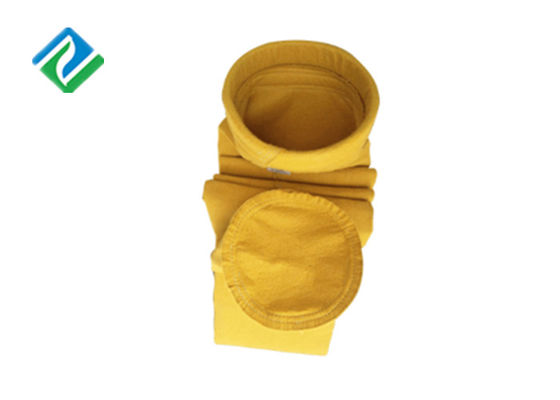

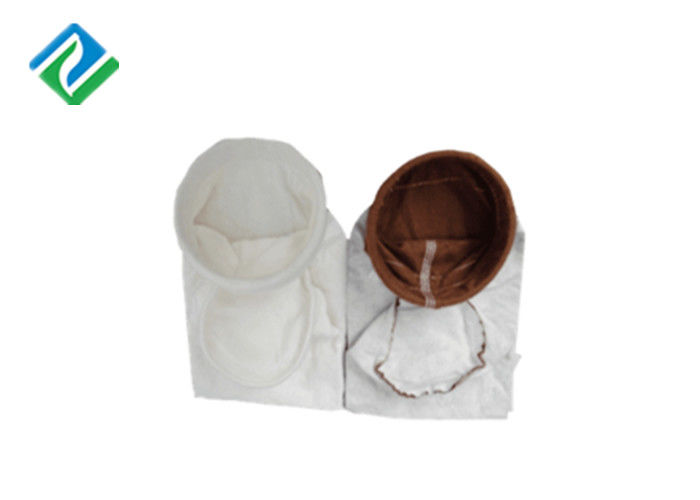

Product Picture
Application
1) Food & Beverage Industry:
Filteration for drinking water,mineral water ,wine,dairy products etc.
(2) Petrochemical Industry:
Filteration for lubrication oil,catalyst,mucilage glue,hydrogen pexoxide etc.
(3) Paint Industry
Filteration for emulsion paint,paint raw material,ink and additive etc.
(4) The filteration for different liquid in the industry of Textile,Printing and Paper-making.
(5) Other application:
Filteration for coating,industrial water and electroplate liquid.
For Chemical Industry fiberglass dust filter bag
fiberglass dust filter bag
Our filter bag for the chemical industry are offered as thorough solutions. This means you will receive expert support not only filter bag design, but also how to optimize the flow parameters of your system to get the absolute best productivity. This process-specific product design and applications engineering approach has proven to be the lowest risk way to optimize your system's performance.
fiberglass dust filter bag
For Cement Industry
fiberglass dust filter ba
We know that the cement producer all over the world need high-performance filter media for kiln/mill, alkali, and other pulse jet or reverse baghouse. Our filter Bags provide emissions control, production increases and the lowest overall maintenance and operating costs.
For Power station and Incineration Industry
fiberglass dust filter bag
With PTFE membrane, our filter bags provide near zero emissions for waste processing and power station boiler. Whether you use standard or low grade coals, wood or tires in your boiler, or operate a chemical, hazardous, or medical waste incinerator, all we can deliver consistently high airflow over the life of the filter bags for your application.
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
