| Place of Origin: | Anhui,China |
| Brand Name: | Air Slide Fabric |
| Certification: | ISO9001-2015 |
| Model Number: | Air Slide Fabric |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pallet , Carton box,knitting bags |
| Delivery Time: | According to the quantity |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | Negotiable |
| Product Name: | 100% Air Slide Fabric | Feature: | Shrink-Resistant, Flame Retardant, Oilproof |
|---|---|---|---|
| Use: | Industry | Weight: | 1 Square =4 Kg |
| Type: | Canvas | Applicable Industries: | S: Manufacturing Plant, Cement Industry |
| Color: | White/Yellow | Max Width: | 2600mm |
| Technics: | Woven | Thickness: | 4-8mm |
| Highlight: | 2600mm Cotton Canvas Fabrics,8mm Cotton Canvas Fabrics,102in cotton filter fabric |
||
Product Parameters
Description:
1 ) clear veins, smooth surface, stable size, no deformation
2 ) super air permeability, even airflow, stable
3 ) heat resistance, abrison resistance, corrosion resisrance
4 ) low energy dissipation, long service life, free repair
5) support OEM order
6) MOQ:1m2
Specification data:
Raw Material =100% spun fiber polyester
Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O
Pressure: 2000pa for middle air resistance
4000pa for high air resistance
Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%
Max Width: 2800mm
Operating Temperature < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C
Technique data:
| name | material | warp tensile strength(N/mm) | thickness(mm) | temperatuer ≤ | instant temperature ≤ | 980Pa air permeability (m3/m2min) | specification(mm) |
| 4layer | polyester | ≥ 425 | 3~8 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |
| 2layer | polyester | ≥ 210 | 2.5~3 | 160 °C | 180 °C | 0.5~2.5 | 100~1700 |

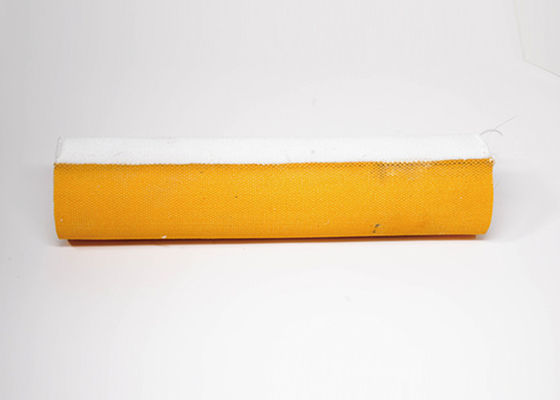

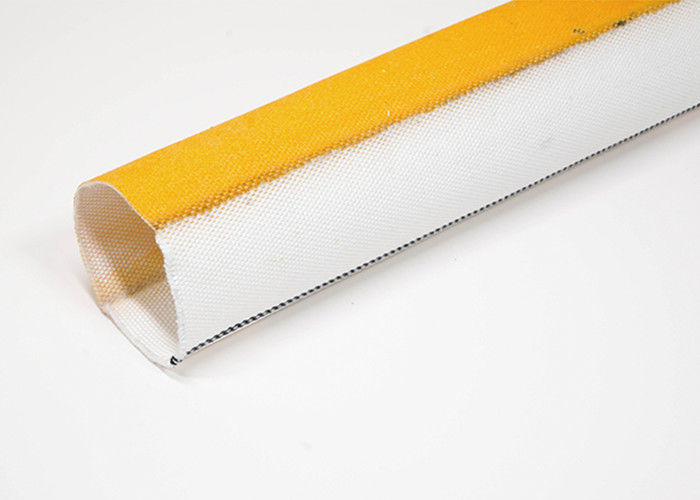

Product Show
Advantages in cement industry:
feature: smooth surface with super function, delaminating resistance, super air permeability, even and stable, high temperature resistance, abrison resistance, low moisture resistance, low return dust, easy assamble, long service life, super replacement for multi-layer canvas and Porous ceramic plate.
usage: mainly used in powdery material air/pneumatic conveying. in cement industry used for Air conveying chute, All of the library, air lift mud pump, flow value, Bulk cement warehouse in dry feeding equipment.
Advantages in aluminium factory:
feature: used in large Prebaked anode cell Concentrated tank transport in Concentrated tank conveying system, like: Cement tanker, feeding system equipment in electric tank, or advanced adjustable feeder.
usage: equipment which used airslide has no mechanical coveyor parts, so has low enegy consumption, no leakage, reliable working, convenient repair, also with long service life.
Advantages in conveying:
feature: airslide can be assembled on bottom inside tank, like: cement tanker, bulk fly car, bulk cement train, The installation of the cement ship etc.
usage: after air compressor blowing-in, making the powder material inside tank turn fluid status from solid status, and then unload the material inside tank into designated spot by using pressure difference outside tank.
Types of Heat Resisting Felt Roller
1 ) 500 C temperature resistance, 100% Aramid ( Dupont Fiber ) Heat resistant fiber for production.
Fiber introduction: Aramid (Dupont Fiber) fiber can resist instant 550 C, longtime working with high temperature sections material (300 C ~500 C ), will not melt and pollute Sections Aluminum as Aramid (Dupont Fiber) Fiber is Thermo settings.
2 ). Kevlar Felt, 480C temperature resistant, 70% Aramid (Dupont Fiber) Fiber blended with 30% carbon fiber to get Kevlar Felt.
Fiber introduction: carbon fiber is also Thermo Setting material will not melt and pollute sections Aluminum, Kevlar Felt can resist instant 480C, long time working in high temperature conditions ( 280 C ~500C),
felt will be in weightlessness. 30% carbon fiber will take calorific conduction and save production cost.
Types of Heat Resisting Felt Belt ( Kevlar / Nomex Roller / Belt )
1 ). 480 C ~500 C Felt Belt
2 ). Nonporous Felt Blet 480 C ~500 C
3 ). Regular Surface conglutinate Felt Belt, 480C ~500 C.
Application of Kevlar Roll Nomex Felt Belt :
1 . Applided in walking beam, Felt Roller 100% Aramid (Dupont Fiber). 500 C. 12mm thickness.
2 . Nonporous felt belt is composed with nonporous scrim and needle punched layer. Different tons of extruder will take different belt,
AA class: 3 layer of Aramid (Dupont Fiber) nonporous scrim, tensile strength 35N/ mm, are suitable for
2000tons extruder.
A Class: Composed by 1 layer of Kevlar nonporous scrim,3 layer high strength Polyester scrim. PE layerin the middle can only resist 200 C, suitable for less then 2000 tons extruder.
Working principle
In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
In fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.
In cement vessel's hold:
The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt
Application:
In industry
Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust
Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum
Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder
FAQ
Q: ,What certifacation you have?
A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock.It depends on the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.
IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
