| Place of Origin: | Hefei,Anhui |
| Brand Name: | Non Woven Dust Collector Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 7 15 25 35 45 75 90 120 160 220 Micron Dust Collector Filter Bags | Seam Treatment: | WS-Fused Seam / SE-Stitched Seam / R-Semi-circle |
|---|---|---|---|
| Applicable: | 15 25 35 45 75 90 120 160 220 Micron Cement Plant,Power Plant,Steel Plant,Mining Plant,Asphalt Plant Etc. | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | 15 25 35 45 75 90 120 160 220 Micron Dust Filter |
| Type: | 15 25 35 45 75 90 120 160 220 Micron Pocket Filter,PPS Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| Highlight: | 7 micron Felt Dust Collector Bags,250mm Felt Dust Collector Bags,FMS polyester filter bag |
||

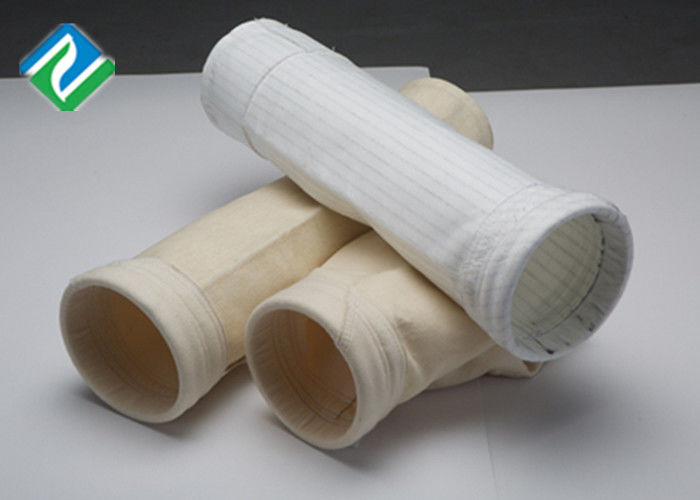

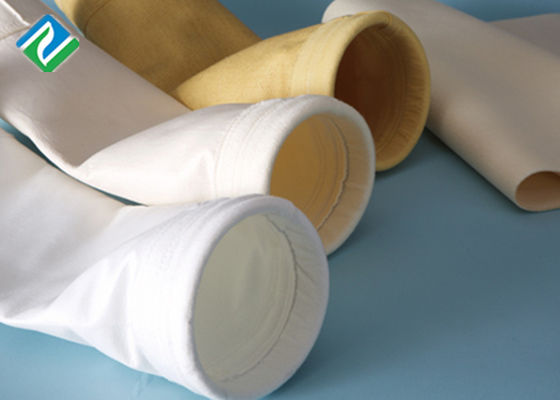

Product Show
Quick details :PPS filter bags is the best choice for coal fired boiler / furnace in thermal power plant . The operation temperature of PPS filter bags is up to 190 degree C.
Features of PPS Filter media / PPS filter bags :
PPS filteris a type of high temperature resistance filter media, the temperature resistant up to 190 C,
PPS filter bags are with excellent chemical resistance except for oxidizing agent such as NO2 and Oxygen.
PPS Filter bags has very good acid resistance and good thermal resistance.
Applications:
In thermal power plant coal boiler, waste incinerator, thermal power plant of fly ash filtration of pulse clear dust collector , PPS filter bag ,Rtyon filter bag are an ideal filtration material.
Specifications of PPS / Ryton Filter Bags :
| Series: | PPS 14oz |
| Material: | PPS (RYTON) 450 - 650g/sq.m needle felt |
| Fibre: | 100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
| Scrim: | 100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
| Weight: | 400 - 650g/m2 (customized) |
| Finishing: | Heat setting, single side singeing, calendering (double sides finishing would be available upon request) |
| Specifications: | Customized according to drawing / sample |
| Packaging: | Polybag in cartons |
| Applications: | Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc. |
| Delivery Time: | 7-45 days |
| Payment Terms: |
Below fiber performance index for your reference.
| Operating Temperature (°C, dry) | Abrasion Resistance | Hydrolysis Resistance | Alkali Resistance | Organic Acid Resistance | Mineral Acid Resistance | Oxidation Resistance (15%) | |
| PPS | 190/ (200) | Good | Excellent | Excellent | Excellent | Excellent | Poor |
How to replace the filter bag
Change-out Pressure Differential: The recommended bag filter change-out pressure differential across the bag media is 0.10MPA ( 15 PSI). Continuing beyond this point will result not only in rapid flow rate reduction and contaminant unloading, but also increase the risk of filter rupture. The max differential pressure allowed is 0.23 MPA( 35PSI).
Removal of use filter: During operation, the filter media many be embedded into perforated on the basket under excessive pressure, making it difficult to remove the bag filter.When this happens, don’t use excessive force to pull the bag, as it will break the ultrasonic welding line and detach the seal ring form the bag body. To safely remove the bag, shake the basket rapidly and then use a spine motion to separate the bag from the basket, slowly pull the use bag filter out.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
