| Place of Origin: | Made in China |
| Brand Name: | Polyester Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Aramid Fabric+glassfiber Dust Filter Bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 50 Micron 100 Micron 200 Micron 100% Pure Polyester Air Filter Bag | Thickness: | 1.6-2mm |
|---|---|---|---|
| Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | 50 Micron 100 Micron 200 Micron High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 450GSM~550GSM | Usage: | 50 Micron 100 Micron 200 Micron Industry Dust Collector |
| Type: | 50 Micron 100 Micron 200 Micron Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| Highlight: | 550gsm Polyester Needle Felt Filter Bags,1.6mm Polyester Needle Felt Filter Bags,550gsm liquid filter bag |
||
Product Description
Filter bag is the core of the dust filter components. The bag filter cost bag filter housing bag polyester filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.
Specification:
|
Polyester Dust Collector Filter Bag Specification
|
|
|
Item
|
Industry Polyester Dust Collector Filter Bag
|
|
Construction
|
Needle Polyester Felt
|
|
Fibre Composition
|
Polyester Fibre
|
|
Weight
|
350gsm,400gsm,450gsm,500GSM, 550GSM 600gsm or OEM/ODM
|
|
Diameter Size
|
100mm,125mm,130mm,150mm,180mm,250mm or OEM/ODM
|
|
Continuous Temperature
|
130-150 Degree
|
|
Feature
|
Good resistance to oxidation, limites resistance to acids and alkalis. Serve life will be affected by water content under high temperature.
|
|
Application
|
To mine, limestone, cement, iron and steel induestries, alumina delivery, electrolytic aluminium, non-ferrous metal production, wood processing, foodprocessing and pharmacy industry.
|
|
Normal Finishing
|
Singeing, Calendering, Heat set
|
|
Functional Finishing
|
anti-static, water and oil repellent, PTFE membrance
|

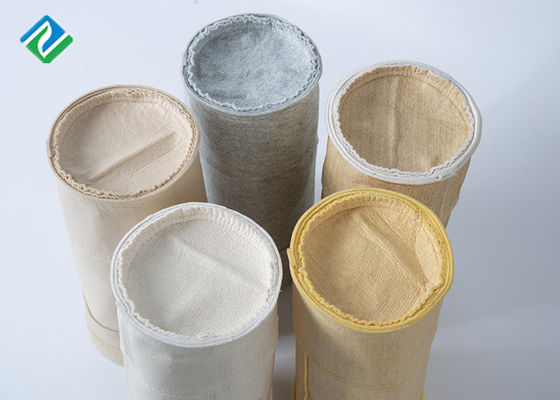

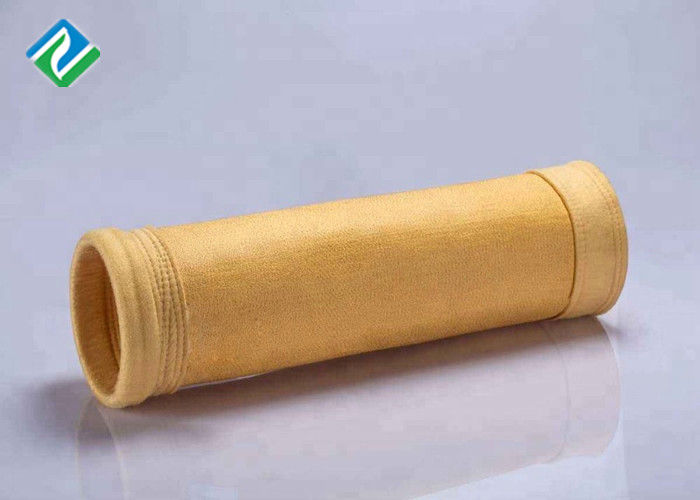

Product Image
Advantages of the product:
1. Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2. Strong intensity
3. Excellent anti-abrasion,good finishing treatment
4. Good raw material, competitive price
5. High filtration efficiency
6. Fast delivery
7. Size can be customized
8. Factort manufacturer could contal quality and price
9. Strict quality inspection and contol
10. Professional designer teams to match with your operating condition
Product Feature:
Suitable for powder spraying, sand blasting, pigment industry, wood processing filtration.
1. Imported long fiber vinegar filter material, the fibers are interlaced and evenly distributed.
2, good wear resistance, more than the traditional filter can withstand the pulse of air back blowing.
3, the filter material stiffness is good, and can be repeatedly cleaned.
4. The end cover and skeleton are all galvanized parts without rust.
5, special closed hole elastic neoprene.
6, can be washed with water, can be used repeatedly.
Main product: Dust filtration,liquid filter filtration and related machines
1. Dust filtration-----filter bag and filter felt
Polyester filter bag,polyester antistatic filter bag,polyester filter bag blending,polyester filter bag with membrane,polyester filter bag water and oil repellent,polyester filter bagspecial type,pp filter bag,aramid filter bag pps filter bag acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84filter bag,HST filter bag,fiberglass filter bag,PTFE mix pps filter bag,Basalt filter bag and polyester needle punched felt,acylic felt,aramid felt,P84 felt so on.
2. Liquid filtration filter bag
Polyester filter bag, PE filter bag, Micro filter bag,5 micro filter bag,10 micro filter bags,PP filter bag,nylon filter bag,ptfe filter bag,stainsteel filter bag and micro filter felt from 0.2micro to 600micro and so on.
3. Machines for making dust filter bags
Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Filter Bag Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order for polyester filter bag
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the bag filter housing bag with waterproof and oil resistant for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
