| Place of Origin: | Made in China |
| Brand Name: | Blast Furnace Aramid Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Customized Size Aramid Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Material: | Nomex(Aramid) | Thickness: | ≥2.0 Mm |
|---|---|---|---|
| Applicable: | Industry Dust Collector | Feature: | Dust Collection,Heat Resistant,High Quality |
| Weight: | 450GSM~550GSM | Usage: | Cement Plant,Power Plant,Steel Plant,Mining Plant Etc. |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 15-30 M3 / M2.m | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 500um Aramid Filter Bags,500 mic Aramid Filter Bags,450gsm felt dust collector bags |
||
Filter media selection:
Use in the dust removal or desulfurization of the new unit, this unit can control the temperature to
solve the dust removal equipment due to aging system caused by the increase in oxygen content
of the problem; and has good corrosion resistance, can be in the Low oxygen content in the use of
conditions
| Serial number | Composition | proper temperature |
Advantage |
Application |
||
| Fiber | Base cloth |
Long-term℃
|
Moment℃ | |||
| 1 | PPS Filter media | PPS | 160℃ | 190℃ |
PPS filter in the power plant coal-fired boiler flue gas field is widely used, because of its excellent corrosion resistance and relatively high cost-effective for the power industry widely used. Currently in the world PPS / PPS in the use of coal-fired power plants to reach about 80%. In the material under the conditions of use and normal conditions can reach 30,000 hours of life
|
|
| 2 | PPS+P84 Filter media | PPS | 165℃ | 190℃ | P84 fiber temperature effect is good, three-leaf type of the opposite sex (specific surface area is relatively large), fiber high strength, anti-oxidation, can improve the material temperature instantaneous performance, improve filtration efficiency, improve the load |
Use in the dust concentration is large, low moisture content in the working conditions
|
| 3 |
PPS Filter media |
PTFE | 165℃ | 190℃ | Good temperature resistance, corrosion resistance is particularly good (in strong acid, alkali environment, long-term use, the intensity is almost no attenuation) so you can ensure that the filter temperature level, sulfur oxides, nitrogen oxides, high oxygen content Excellent performance, strength attenuation curve is relatively stable |
Use in the electrical bag with the project or the old unit transformation, to solve the problem of high oxygen content
|
| 4 |
PPS+PTFE Filter media |
PTFE | 170℃ | 200℃ |
Electric bag with the project or the old unit transformation project, or high life requirements, high oxygen content in the case.
|
|
| 5 |
P84+PTFE Filter media |
PTFE | 260℃ | 280℃ |
Electric bag with the project or the old unit transformation project, or high life expectancy, high oxygen content in the working conditions, and high dust concentration, high emission requirements, high temperature performance
|
|
There are PTFE high temperature filter felt series:
| composition | Operating temperature | Advantages and disadvantages | ||
| fiber | Scrim | Longterm temperature | Instantaneous temperature | |
|
PPS |
PTFE |
165 |
190 |
Sulfur coal,temperature <165(the higher instantaneous temperature, higher oxygen content)
|
|
PTFE+PPS (Superfine plus PPS Blended) |
PTFE |
170 |
200 |
High sulfur coal, suitable for the occasion of corrosive and high content of oxygen,improve the use of temperature and oxidation resistance,cost-effective |
|
PTFE |
PTFE |
260 |
280 |
High sulfur coal, high temperature, high corrosion occasions, the initial strong low, expensive |
|
PTFE+P84 |
PTFE |
260 |
280 |
Dust content,higher oxygen content, high temperature, gas corrosion strong flue gas dust field |

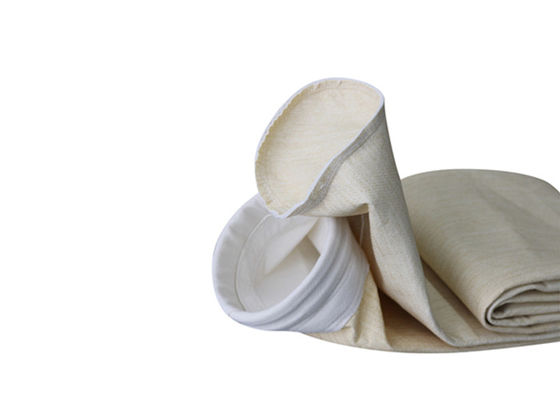

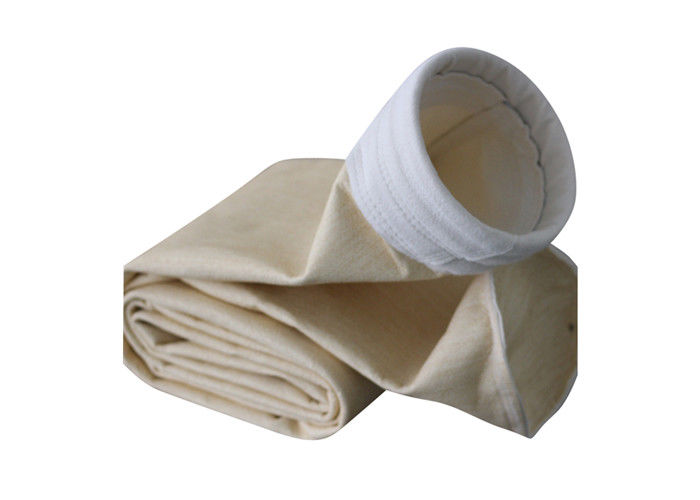

Product Show
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
