| Place of Origin: | Made in China |
| Brand Name: | Aramid Fabric Dust Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Customized Size Aramid Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 25 Micron 50 Micron 100 Micron 200 Micron Filter Bag P84 Aramid | Thickness: | ≥2.0 Mm |
|---|---|---|---|
| Scrim: | NOMEX | Feature: | 25 Micron 50 Micron 100 Micron 200 Micron Dust Collection,Heat Resistant,High Quality |
| Weight: | 550 G/m2 | Usage: | 25 Micron 50 Micron 100 Micron 200 Micron Cement Plant,Power Plant,Steel Plant,Mining Plant Etc. |
| Type: | 25 Micron 50 Micron 100 Micron 200 Micron Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 15-30 M3 / M2.m | Filtration Efficiency: | < 5mg/Nm3 |
| Highlight: | P84 Industrial Dust Collector Bags,450gsm Industrial Dust Collector Bags,FMS felt filter bag |
||
Filter media selection:
| Name | NOMEX | P84Complex | P84 | Glass fiber composite filter | |||
| Fiber | NOMEX | P84+NOMEX | P84 | Ultrafine glass fiber+P84 |
glass fiber+P84
|
||
| Scrim | NOMEX | PTFE | PTFE | Ultrafine glass fiber | PTFE | ||
|
Weight (g/m2) |
550 | 550 | 550 | 850 | 650 | ||
|
Continuous use of temperature(℃) Continuous |
200 | 230 | 260 | 260 | 260 | ||
|
Continuous use of temperature(℃) Peak |
230 | 250 | 280 | 280 | 280 | ||
|
Breaking strength (N/5*20CM) Strenght |
Longitudinal | >800 | >800 | >700 | 2400 | >700 | |
| Transverse | >1000 | >1100 | >950 | 2400 | >800 | ||
|
Elongation at break% Elongation |
Longitudinal | <35 | <15 | <30 | <10 | <8 | |
| Transverse | <55 | <50 | <55 | <10 | <15 | ||
|
Air permeability (cm3/cm2*s) |
15~25 | 15~25 | 15~25 | 20~30 | 20~30 | ||
| Applicable filter wind speed(m/min) | <1.2 | <1.2 | <1.2 | <0.8 | <1 | ||
| Heat shrinkage rate%(220℃,260℃2H) | Vertical | <1 | <1 | <1 | <1 | <1 | |
|
Weft
|
<1 | <1 | <1 | <1 | <1 | ||
| A year of pressure to ensure that the value of PA |
<1200
|
<1100
|
<1000
|
<1500
|
<1400 | ||

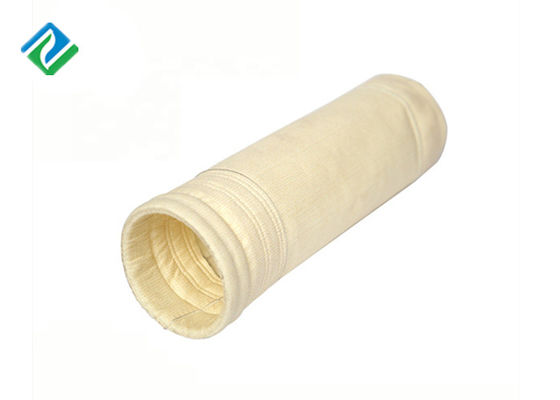

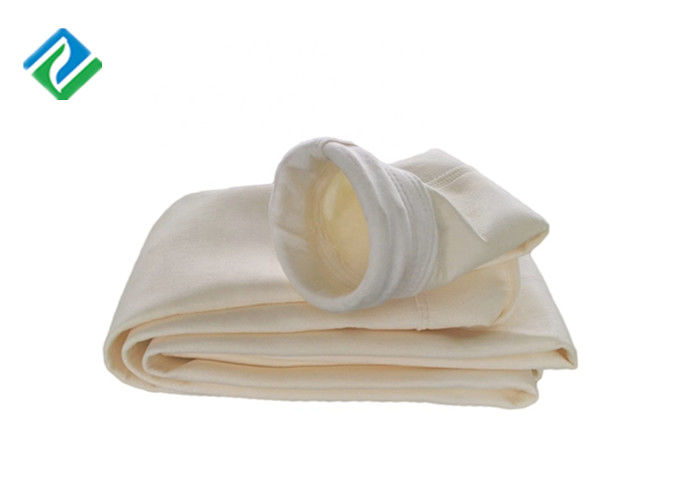

Product Show
Factors That Affect The Dust Removal Effect Of Bag Filter
As the bag bag filter the most critical accessories, bag performance and quality of good or bad to a large extent determine the efficiency of the bag filter and the length of life, in general, the better the quality of the bag, the more efficient dust High, the longer the service life. The selection of the bag also restricts the dust effect is good or bad, such as the emergence of "big band small" situation, that will appear keel (supporting the structure of the bag is usually called keel) and bag with lax, smoke through the gap Leakage, and finally from the chimney emerge, and produce a series of adverse reactions; such as the emergence of "small with large" Although you can also use, but in the proportion of large dust adsorption, the use of a period of time will be out of the bag phenomenon, chimneys often Appear black smoke situation.
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
