| Place of Origin: | Anhui,China |
| Brand Name: | Industrial Filter Cloth |
| Certification: | ISO9001-2015 |
| Model Number: | Industrial Filter Cloth |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pallet , Carton box,knitting bags |
| Delivery Time: | According to the quantity |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100000 pcs per month |
| Product Name: | 0.1 0.5 1 5 Micron Industrial Filter Cloth | Weight(g/m2): | 850g/m2 |
|---|---|---|---|
| Thickness(mm): | 2.2-2.4mm | Specifications: | Customized |
| Material: | 0.1 0.5 1 5 Micron Aramid,aramid Nomex Metamax | Operating Temperature: | <260℃ (MAX280℃) |
| Applicable Industries: | Cement, Steel,waste Incineration Etc | Usage: | 0.1 0.5 1 5 Micron Dust Filter Cloth For Industry Dust Collector Filter |
| Color: | White / Yellow | Air Permeability (L/m2/S):: | 2200±110 |
| Highlight: | 2.2mm PTFE Filter Fabric,ISO9001 PTFE Filter Fabric,850g/m2 filter press cloth |
||

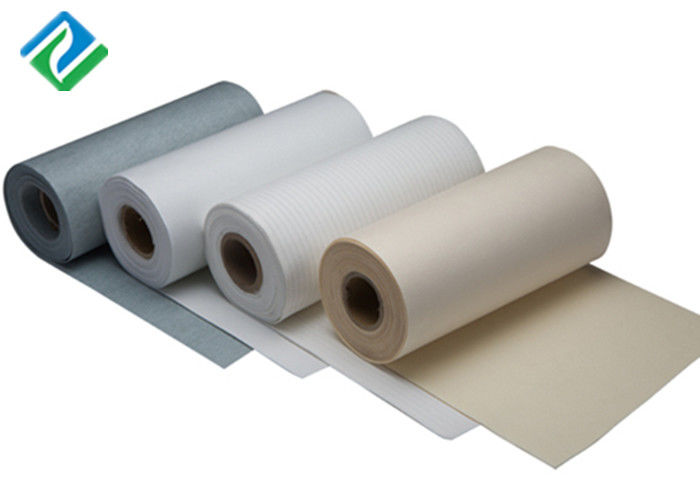

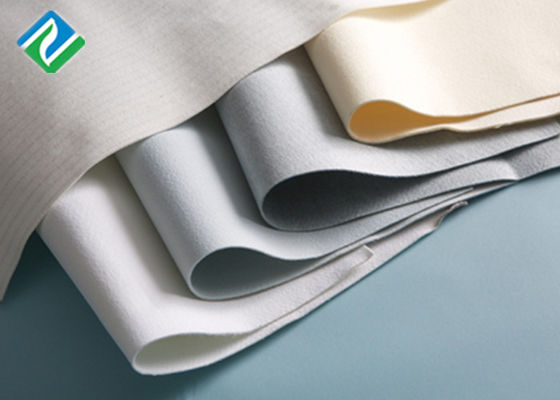

Product Show
Product Description
Features of Filter Cloth
1. Filter cloth is used for sludge dehydration in sewage treatment factories. They have the characteristics of good water permeability, air permeability and non-revealed sludge, acid-resisting, alkali-resisting, heat resistance (180°C) .Because of their designing structure, the sludge can be peeled off easily after pigeonhole filter, so the screen are easily cleaned and have a long working time. Therefore they are designed specially for sludge dehydration.
2.Filtration fabrics for belt filter presses are characterized by high strength, resistance against abrasion and high dimensional stability. Fabric construction secures good water drainage and at the same time protects the sludge cake form going through the fabric. Individual fabric designs differ in speed of dewatering, size of apertures, surface smoothness for easy cake release, resistance against abrasion, etc.
3. Fabrics for belt filter presses are equipped with stainless steel clipper seam and belt edges are melted. There is also the possibility to connect the fabric onto endless belt by using a woven seam, which is stronger and has a higher lifetime than clipper seam.
Filter Cloth Chemical Function :
| Property | Polyester (PE) | Polypropylene | Nylon |
| Acid | Excellent | Excellent | Excellent |
| Alkali | Average | Excellent | Excellent |
| Electrical Conductivity | Poor | Good | Average |
| Elongation | 30%-40% | Better than PE | Poor |
| Recovery | Excellent | Slightly better than PE | Poor |
| Abrasion | Excellent | Good | Excellent |
| Heat Resistance | 150 °C | 90 °C | 100 °C |
| Softening point | 230 -240 °C | 140 -150 °C | 200 °C |
| Melting point | 255 -265 °C | 165 -170 °C | 220 °C |
Application of Filter Cloth
Dewatering of municipal sludge in sewage plants
Dewatering of paper sludge and pulp
High pressure dewatering of pulp
Production of fruit and vegetable juices
Production of wine
Dewatering of minerals in mining industry
Dewatering of sand
Dewatering of sludge in agriculture
Other industrial separation processes
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag
Packing And Delivery
Packaging:Water proof woven bag and Carton or customized.
Delivery time:Within 15days after payment.And According to your quantity.
FAQ
1. How to choose the right filter cloth for your company?
Cause every filter has its own characteristics and parameters, so when we choose filter material for filter cloth , we have to know the following parameters:
(1) Working enviroment
temperature ( Continuous / Peak) filtering ingredient
(2) Measurement and design (need the drawing)
(3) Material (or we offer the solution).
2. How to assure the filter cloth quality?
All the products we produce are strictly based on international standards. Before the production, you will receive a sample from us for your confirmation.
3. How many times can I clean and reuse a filter cloth?
Filter cloth are designed for one time use. We supply high quality cloth to increase the service time of the filter bag.
4. Sample rule
Usually, we offer the sample free, but you should pay the freight.
