| Place of Origin: | Made in China |
| Brand Name: | Aramid Fabric Dust Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Customized Size Aramid Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 50 Micron 100 Micron 200 Micron 300 Micron Aramid Dust Filter Bag | Thickness: | ≥2.0 Mm |
|---|---|---|---|
| Scrim: | NOMEX | Feature: | 50 Micron 100 Micron 200 Micron 300 Micron Dust Collection,Heat Resistant,High Quality |
| Weight: | 550 G/m2 | Usage: | 50 Micron 100 Micron 200 Micron 300 Micron Cement Plant,Power Plant,Steel Plant,Mining Plant Etc. |
| Type: | 50 Micron 100 Micron 200 Micron 300 Micron Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 15-30 M3 / M2.m | Filtration Efficiency: | < 5mg/Nm3 |
| Highlight: | 100 micron Nomex Filter Bag,550gsm Nomex Filter Bag,nomex 100 micron filter bag |
||
Filter media selection:
| Name | NOMEX | P84Complex | P84 | Glass fiber composite filter | |||
| Fiber | NOMEX | P84+NOMEX | P84 | Ultrafine glass fiber+P84 |
glass fiber+P84
|
||
| Scrim | NOMEX | PTFE | PTFE | Ultrafine glass fiber | PTFE | ||
|
Weight (g/m2) |
550 | 550 | 550 | 850 | 650 | ||
|
Continuous use of temperature(℃) Continuous |
200 | 230 | 260 | 260 | 260 | ||
|
Continuous use of temperature(℃) Peak |
230 | 250 | 280 | 280 | 280 | ||
|
Breaking strength (N/5*20CM) Strenght |
Longitudinal | >800 | >800 | >700 | 2400 | >700 | |
| Transverse | >1000 | >1100 | >950 | 2400 | >800 | ||
|
Elongation at break% Elongation |
Longitudinal | <35 | <15 | <30 | <10 | <8 | |
| Transverse | <55 | <50 | <55 | <10 | <15 | ||
|
Air permeability (cm3/cm2*s) |
15~25 | 15~25 | 15~25 | 20~30 | 20~30 | ||
| Applicable filter wind speed(m/min) | <1.2 | <1.2 | <1.2 | <0.8 | <1 | ||
| Heat shrinkage rate%(220℃,260℃2H) | Vertical | <1 | <1 | <1 | <1 | <1 | |
|
Weft
|
<1 | <1 | <1 | <1 | <1 | ||
| A year of pressure to ensure that the value of PA |
<1200
|
<1100
|
<1000
|
<1500
|
<1400 | ||

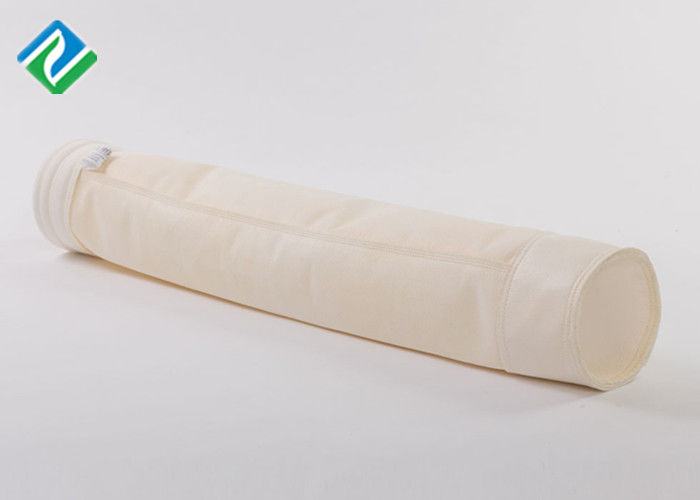

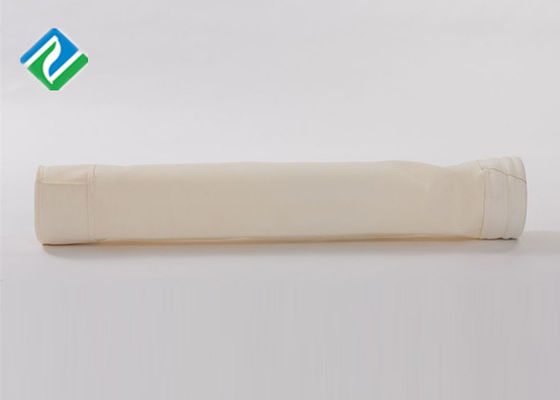

Product Show
Bag Filter Introduction
Bag filter is a dry filter device. It is suitable for capturing small, dry, non-fibrous dust. The filter bag is made of textile filter cloth or non-woven felt, and the dusty gas is filtered by the filtering effect of the fiber fabric. When the dust-laden gas enters the bag filter, the particles are larger and larger than the dust, The role of sedimentation down, fall into the ash bucket, containing smaller dust in the filter through the filter, the dust is blocked, so that the gas is purified, dust removal efficiency is high, generally more than 99.5%, up to 99.99%.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
