| Place of Origin: | Made in China |
| Brand Name: | Fiberglass Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 0.1 Micron 0.2 Micron 0.5 Micron Fiberglass Filter Bag | Thickness: | 1.6-2mm |
|---|---|---|---|
| Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | 0.1 Micron 0.2 Micron 0.5 Micron High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 500gsm, 550gsm And 700gsm | Usage: | 0.1 Micron 0.2 Micron 0.5 Micron Industry Dust Collector |
| Type: | 0.1 Micron 0.2 Micron 0.5 Micron Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| Highlight: | 0.1 micron Dust Extraction Filter Bags,1.6mm Dust Extraction Filter Bags,450gsm high temperature filter bags |
||

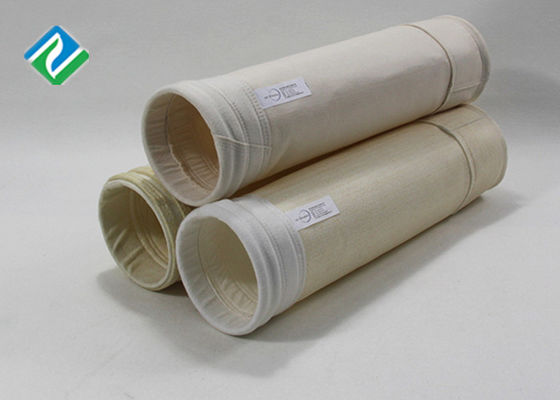

Product Parameters
PTFE filter bags are applied in pulse jet cleaning dust collectors where chemical resistance and durability are reruired.
100%PTFE filber high temperature felt
PTFE scrim reinforced felt which is surface treated can withstand various conditions.
Common treatments include singed, canlender and ePTFE membrane.
The efficiency of membrane PTFE felt reach 99.9999% through surface filtration with 260ºC continuous service temperture,
excellent acid and resistance.
Feature
1.High Temperature Resistance:240-280
2.Excellent Anti-Acid And Anti-Alkali
3.Abrasion resistance, high tensile strength
4.Long Service Life: > 4500 hours
5. low resistance of filtration
6.Single fiber, high porosity, gas filtration resistance
7.Can be used in a variety of complex situation and harsh environmental conditions
Specifications:
| 800gsm Fiberglass Punched Felt | |
| Construction | Needle Felt |
| Fibre Composition | Fiber glass |
| Scrim Composition | Fiber glass |
| Felt Area Weight | 800g/m2 |
| Thickness | 2.1-2.3mm |
| Mean Air Permeability | 200-350(L/m2/s@200pa) |
| Breaking Strength-MD(warp) | ≥1500 |
| Breaking Strength-CMD(weft) | ≥1500 |
| Breaking Elongation(N/5cm)-MD (warp) | ≤10 |
| Breaking Elongation(N/5cm)-CMD (weft) | ≤10 |
| Dry shrinkage MD(130℃warp ) | ≤3 |
| Dry shrinkage CMD(130℃weft ) | ≤3 |
| Operating Temperatures | ≤260deg C |
| Recommended Maximum Continuous | 260 deg C |
| Recommended Maximum Surge | 280 deg C |

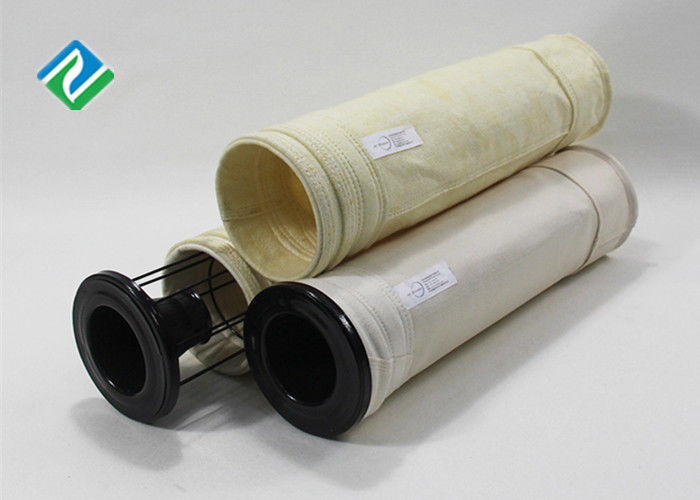

Product Show
Main product: Dust filtration,liquid filter filtration and related machines
1. Dust filtration-----filter bag and filter felt
Polyester filter bag,polyester antistatic filter bag,polyester filter bag blending,polyester filter bag with membrane,polyester filter bag water and oil repellent,polyester filter bagspecial type,pp filter bag,aramid filter bag pps filter bag acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84filter bag,HST filter bag,fiberglass filter bag,PTFE mix pps filter bag,Basalt filter bag and polyester needle punched felt,acylic felt,aramid felt,P84 felt so on.
2. Liquid filtration filter bag
Polyester filter bag, PE filter bag, Micro filter bag,5 micro filter bag,10 micro filter bags,PP filter bag,nylon filter bag,ptfe filter bag,stainsteel filter bag and micro filter felt from 0.2micro to 600micro and so on.
3. Machines for making dust filter bags
Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.
4. air filter element assy Detail
pocket filter media Mini-pleat HEPA filter ( Gel gap Mini-pleat HEPA filter 95%/ cassette/ceiling type air filter )
Minipleat HEPA filter is compact design. In case of similar installation sectional module, it has larger filtering area, higher air flow and lower air brag. The filtering rate against MPPS(Most Penetrating Particle Size, of 0.1um-0.3um diameter) is higher than99.5%.
5.Pocket filter media advantage
1. Inside-outside flow configuration : It can capture contaminants effectively on the inside.
2. Plastic or steel seal : It is necessary and helpful for prevention of fluid bypass and subsequent contamination of the downstream fluid. All of our good performance filter bags are provided in both plastic and steel ring sealing collar versions that will be fit for most filter bag manufactures' housings.
3. Welded seams and thermally treated exterior surfaces It is efficient for control of fiber migration.
4. Our material has the special ability to handle viscous fluids.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
